Hyundai Tucson: Crash pad lower panel

Hyundai Tucson - Fourth generation (NX4) - (2020-2023) - Workshop Manual / Body (Interior and Exterior) / Crash Pad / Crash pad lower panel

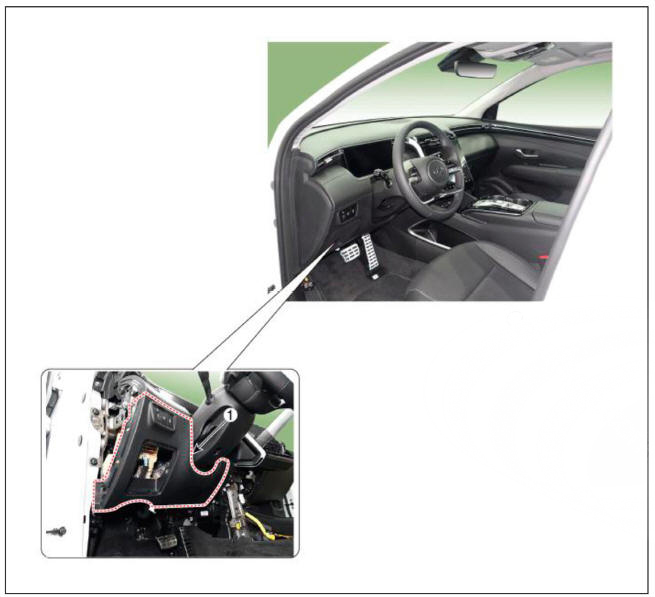

Component Location

  1. Crash pad lower panel

Replacement

WARNING

  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.

WARNING

Take care not to bend or scratch the trim and panels.

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad side coverLH.

    (Refer to Crash Pad - "Crash Pad Side Cover")

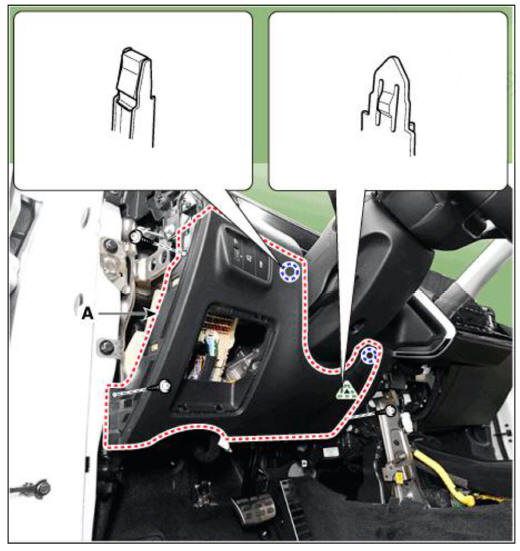

  3. Loosen the mounting screws, remove the crash pad lower panel (A).

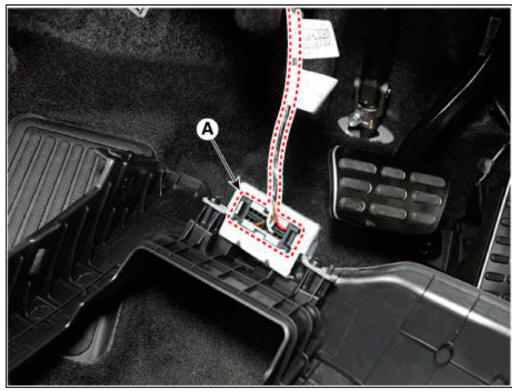

  1. Separate the connector (A).

WARNING

WARNING

Replace any damaged clips (or pin-type retainers).
