Hyundai Tucson: When Ignition Key Is Turned ON (engine OFF), The ABS Warning Lamp Does Not Light Up.

Hyundai Tucson - Fourth generation (NX4) - (2020-2023) - Workshop Manual / Brake System / ESC (Electronic Stability Control) System / When Ignition Key Is Turned ON (engine OFF), The ABS Warning Lamp Does Not Light Up.

Detecting condition

When current flows in the HECU the ABS warning lamp turns from ON to OFF as the initial check. Therefore if the lamp does not light up. the cause may be an open in the lamp power supply circuit, a blown bulb, an open in the both circuits between the ABS warning lamp and the HECU, and the faulty HECU.

  • Faulty ABS warning lamp bulb
  • Blown fuse is related to ABS in the engine compartment junction block
  • Faulty ABS warning lamp damaged
  • Faulty ABS warning lamp module
  • Faulty HECU

Inspection procedures

Problem verification

  1. Disconnect the connector from the ESC control module and turn the ignition switch ON.
  2. Does the ABS warning lamp light up?

Inspectagain after replacing the ESC HECU.Inspectagain after replacing the ESC HECU.

Check the power source for the ABS warning lamp.Check the power source for the ABS warning lamp.

Check the power source for the ABS warning lamp

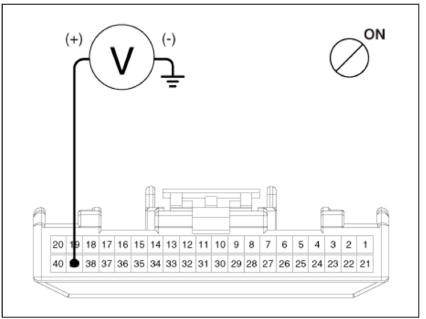

  1. Disconnect the instrument cluster connector (M08) and turn the ignition switch ON.
  2. Measure the voltage between terminal (M08) 39 of the cluster harness side connector and body ground.

Specification : approximately B+

  1. Is voltage within specification?

Check the CAN circuit resistance for ABS warning lamp. Check the CAN circuit resistance for ABS warning lamp.

Check for blown fuse. Check the CAN circuit resistance for ABS warning lamp Check for blown fuse.

Check the CAN circuit resistance for ABS warning lamp

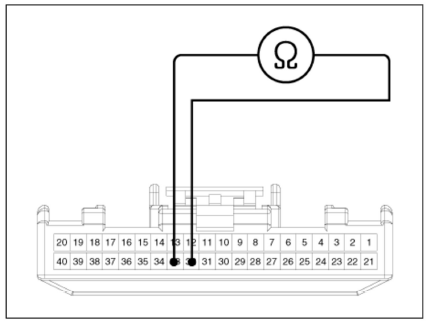

  1. Disconnect the instrument cluster connector (M08) and turn the ignition switch OFF.
  2. Measure the resistance between terminal (M08) 32 and 33 of the cluster harness side connector.

Specification : 60

  1. Is resistance within specification?

ABS warning lamp bulb or instrument cluster assembly.ABS warning lamp bulb or instrument cluster assembly.Repair ABS warning lamp bulb or instrument cluster assembly.

Check the CAN circuit wiring for ABS warning lamp.Check the CAN circuit wiring for ABS warning lamp.

Check the CAN circuit wiring for ABS warning lamp

  1. Disconnect the instrument cluster connector (M08) and ESC HECU connector, and then turn the ignition switch OFF.
  2. Check for continuity between terminal (M08) 32 of the cluster harness side connector and terminal 26 of ESC HECU harness side.

Check for continuity between terminal (M08) 33 of the cluster harness side connector and terminal 14 of ESC HECU harness side.

Specification : Below 1

  1. Is resistance within specification?

Repair short of wiring between terminal 26. 14 of ESC HECU harness connectorRepair short of wiring between terminal 26. 14 of ESC HECU harness connector and ABS warning lamp module.

open of wiring between terminal 26. 14 of ESC HECU harness connectoropen of wiring between terminal 26. 14 of ESC HECU harness connectorRepair open of wiring between terminal 26. 14 of ESC HECU harness connector and ABS warning lamp module.
