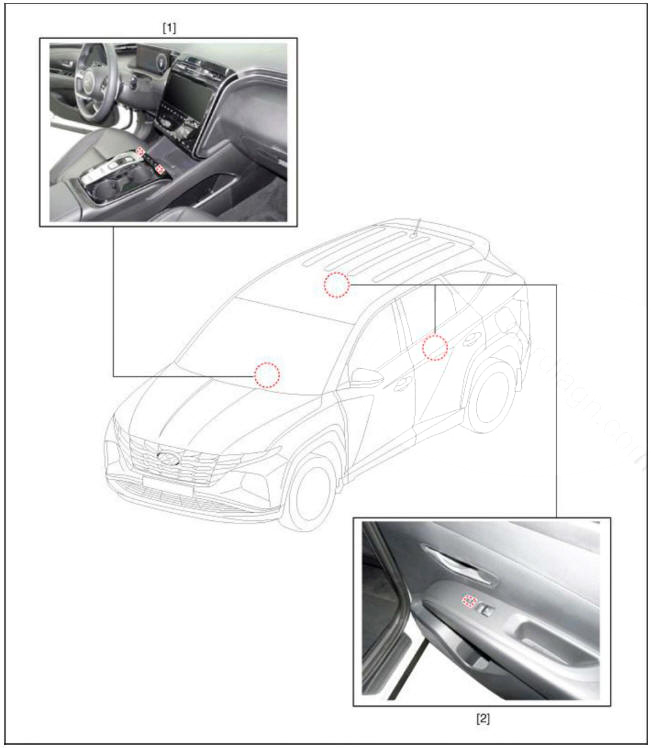

  1. Front seat heater switch
  2. Rear seat heater switch

Circuit Diagram

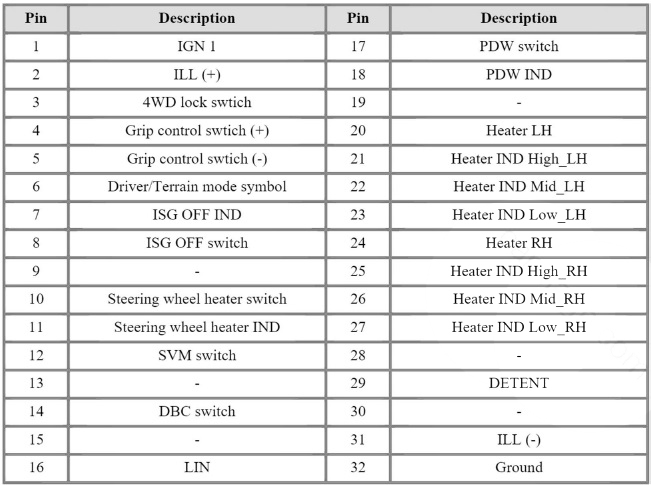

Connector Pin Information

Removal

Removal

  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  • Take care not to bend or scratch the trim and panels.

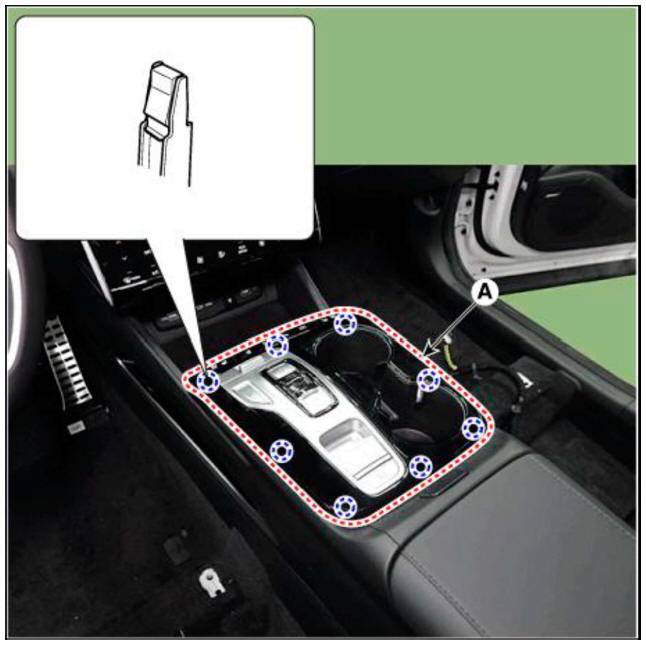

  1. Remove the console upper cover (A).

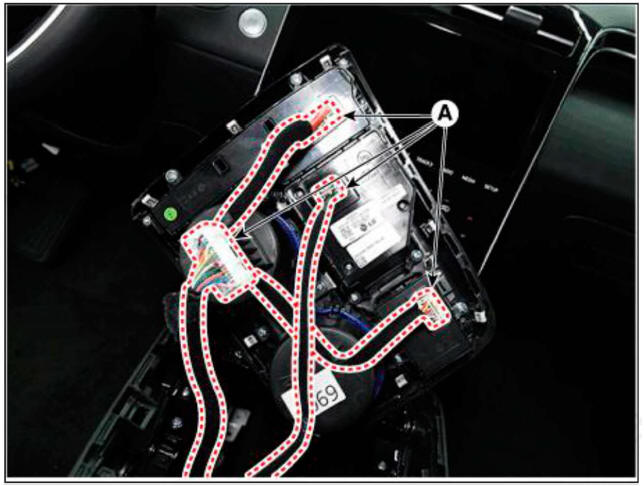

  1. Press the lock pin, separate the connectors (A).

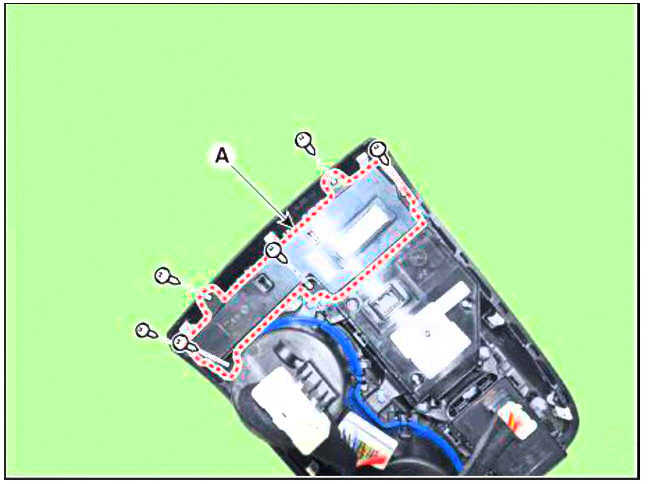

  1. Remove the seat heater switch (A) after loosening mounting screws.

Installation

Installation

  1. Install the front seat heater switch.
  2. Install the console upper cover.
  3. Connect the negative (-) battery terminal.
