Hyundai Tucson: Curtain Air Bag (CAB)
Hyundai Tucson - Fourth generation (NX4) - (2020-2023) - Workshop Manual / Restraint / Airbag Module / Curtain Air Bag (CAB)

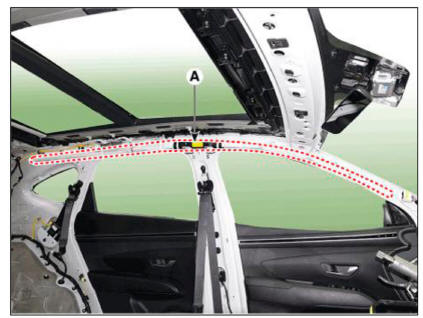

Components Location
- Curtain Air Bag (CAB)
Removal
- Disconnect the batteiy negative terminal.
WARNING
After disconnecting the cables, wait at least 3 minutes.
- Remove the roof trim.
(Refer to Body - "Roof Trim Assembly")

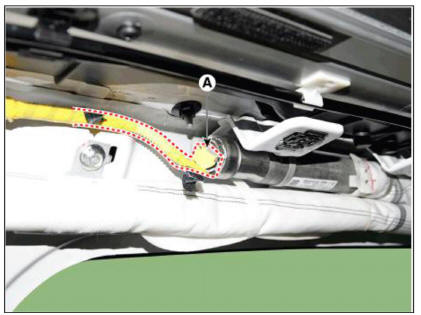

- Disconnect the connector (A) from the curtain Airbag module.
- Remove the curtain airbag module (A) after loosening the bolt and nut.
Tightening torque :
Bolt: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
Nut: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.4 lb-ft)
Installation
- Install in the reverse order of removal.
- After installing the airbag module, confirm proper system operation.
WARNING
- Switch ON the ignition. The SRS indicator light should turn on for about three-six seconds and then off.
